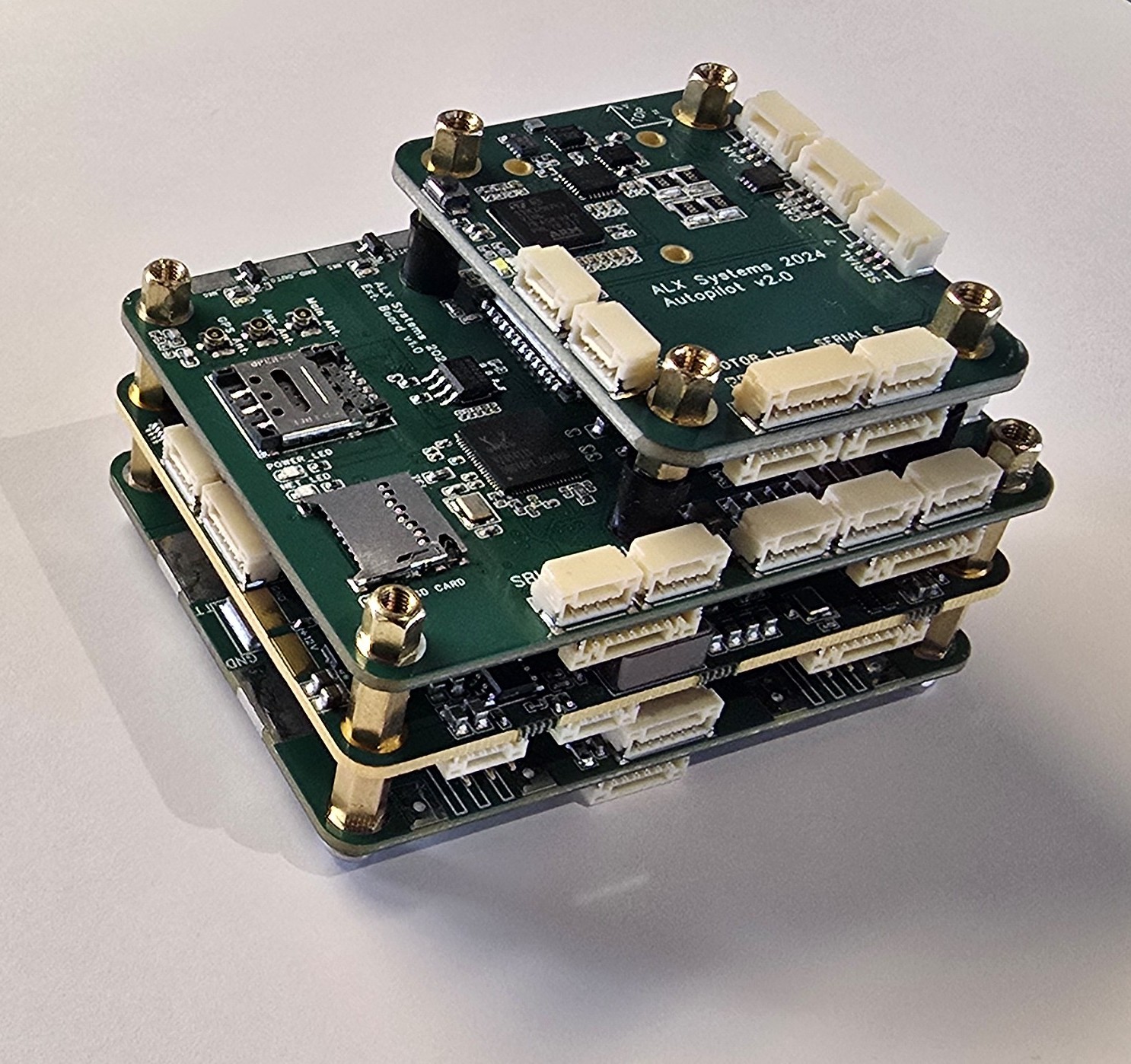

ALX Flight Core a 100% made in Belgium hardware, and a fully evolutive solution for automating UxVs, presenting several unique features like :
On a footprint of 60x70x50mm, it's composed of
A computer with a 2.4Ghz Quad core CPU, 8Gb of RAM and 32Gb of eMMC disk running ALX OS, equiped with all the interfaces:
- 4 USB 3.0 interface
- 4 USB 2.0 interface
- CAN Interface
- I2C interface
- CSI 2 Lanes + CSI 4 Lanes
- Display Port
A peripheral board, including:
- LTE CAT6 modem
- 315Mhz, 430Mhz, 800Mhz radio
- 2.4Ghz Long range radio
- Up to 512Gb of extra storage
- 4 USB 2.0 interface
- 4 software activable relays
- 16 PWM outputs
A Power board, dedicated to manage :
- Stabilized power for all boards and devices
- Self charge of batteries
- Monitoring of batteries
- QI charge or auxilary power
- Solar charge of batteries
An Autopilot, compatible with common flight stacks like Ardupilot, PX4 or Betaflight, and integrating
- Triple IMU
- Barometer
- On-board and external Compass
- CAN Interface
- I2C interface
- 4 Serial Port
- GPS
ALX Flight Core is equiping all UxVs of ALX Systems
